3L PET bottle blowing machine and plastic bottle production machine
with fully
automatic pet bottle blowing machine
Production:
MW-D5L2series is the most stable two-step fully-automatic pet
stretch-blow molding machines(reheat). It has 4 to 6 cavities and
the maximum capacity of the products is 5000ml. It can blow bottles
in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth,
hot filling, and other packing containers, which is made of plastic
of crystalline type, such as PET
Features:
1. Adopt special electronic controlling circuit for heating; high
efficiency in simultaneous controlling one lamp or more; lower
consumption.
2. Adopt the theory of heat transfer and feedback while designing
the shape and thickness of perform.
3. The perform will be heated evenly, not be influenced by outside
environment.
4. Cooling system will cold air cycle ensures same heat exposure of
internal and external surface of the bottles.
5. The air exhaust system designed by CAD can guarantee the
deviation of heating furnace temperature +/-1 degree.
6. Air circuit system consists of movement and blowing so as to
meet the needs of different air pressure, also to provide stable
high pressure for blowing different shapes of big capacity bottles.
7. The system is equipped with silencer, connecting rod and
articulated refueling devices.
8. Two modes of operation: semi-automatic mode and automatic mode.
9. Small size, low investment. One person enough to operate, simple
and safe.
Technical Parameters:
| | | |
| | |
| | |
| | |
| | | |
Mould plate dimension (L*H) | | |
| | |
| | |
| | | |
| | |
| | |
| Main body dimension (L*W*H) | | |
| | |
| | |
| | |
| Item | Brand | Country |
| Oil Pump | YUKEN | Japan |
| Control switch | MITSUBISHI PLC | Japan |
| The contactor | Schneider Electric | France |
| Reversing valve | DUPLOMATIC | Italy |
| Proportioning valve | SMC | Japan |
| oil valve | YUKEN | Japan |
| Touch screen | PROFACE | Japan |
| PLC | MITSUBISHI | Japan |
| Inverter | INVT | Taiwan |
| Temperature | OMRON | Japan |
| Valve | ATOS | Italy |
One Year Free Charge Spare Parts List
| No | Item | Qty |
| 1 | Infrared lamp | 10pcs |
| 2 | Stretch cylinder sealer | 4pc |
| 3 | HP Air pipe | 10m |
| 4 | LP Air pipe | 10m |
| 5 | Sealing cylinder seals | 4pcs |
| 6 | 24V magnet valve coil | 2pcs |
| 7 | Robot clip | 4 PAIRS |
| 8 | Magnetic switch | 1pc |
| 9 | Preform holder | 4SETS |
| 10 | Approximity Sensor | 1pc |
| 11 | High pressure reducer valve | 1pc |
| 12 | Low Pressure Air Pipe | 15m |
| 13 | Air Connector | 20pcs |
| 14 | Instruction | 1pc |
| 15 | Anti-rust painting | 1bottle |
| 16 | Temperature controller module | 1pc |
| 17 | relay 24V | 1set |
| 18 | Tool box | 1set |
| 19 | Inner hexagon spanner(4,6,8,10,12) | 1set |
| 20 | Solid wrench(8,10,12,13) | 1pc for each |
| 21 | Slot type screwdriver(3inch, 4inch) | 1pc for each |
| 22 | Phillipe screwdriver(3inch, 4inch) | 1pc for each |
| 23 | Machine foot M16 | 6pcs |
| No | Item | Qty |
| 1 | Infrared lamp | 10pcs |
| 2 | Stretch cylinder sealer | 4pc |
| 3 | HP Air pipe | 10m |
| 4 | LP Air pipe | 10m |
| 5 | Sealing cylinder seals | 4pcs |
| 6 | 24V magnet valve coil | 2pcs |
| 7 | Robot clip | 4 PAIRS |
| 8 | Magnetic switch | 1pc |
| 9 | Preform holder | 4SETS |
| 10 | Approximity Sensor | 1pc |
| 11 | High pressure reducer valve | 1pc |
| 12 | Low Pressure Air Pipe | 15m |
| 13 | Air Connector | 20pcs |
| 14 | Instruction | 1pc |
| 15 | Anti-rust painting | 1bottle |
| 16 | Temperature controller module | 1pc |
| 17 | relay 24V | 1set |
| 18 | Tool box | 1set |
| 19 | Inner hexagon spanner(4,6,8,10,12) | 1set |
| 20 | Solid wrench(8,10,12,13) | 1pc for each |
| 21 | Slot type screwdriver(3inch, 4inch) | 1pc for each |
| 22 | Phillipe screwdriver(3inch, 4inch) | 1pc for each |
| 23 | Machine foot M16 | 6pcs |

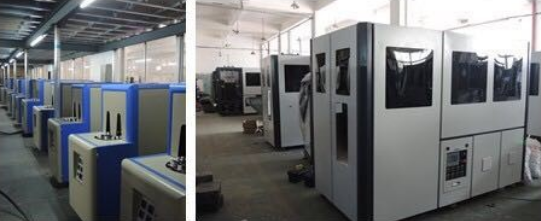

Our workshop
Our Services
What service can offer you?
Your inquiry related to our product & price will be replied within
12 hours.
Well-trained & experienced staff are to answer all your inquiries
in English and Chinese.
Working time: 8:00am ~10:00pm, Monday to Saturday(UTC+8).
OEM & ODM projects are both available.
Your business relationship with us will be confidential to any
third party.
Good after-sale service offered, please get back to us if you got
any questions.
After Sales Service
One year warranty for the whole system .
Free equipment installation and debugging.
After one year , we can help you to maintain the machine and the
accessories are provided only one the cost price.
We can provide internship service and help you train the operator
and mechanic.
Free production technology and process configuration.
We can help you to design the product line , workshop and provide
turn-key project.
