5 Gallon Bottle Blowing Machine , Semi Automatic Injection Blow Molding Machine

Ask Lasest Price
Brand Name :	Higee
Model Number :	MW-D1
Certification :	CE ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

5 Gallon Bottle Blowing Machine , Semi Automatic Injection Blow Molding Machine

semi-automatic 5 gallon bottle blow machine and injection stretch blow

molding machine with pet preform blowing machine for 20L

Feature:

1. Perfect function with economic investment.
2. Small size and compact construction with no space waste.
3. Easy to operate and maintain,operation by one person.
4. Saving power and uneasy to worn out.Adopting new double crank four bars to lock mould,the cross fixed. Providing high pressure blowing system.
5. We can provide performs and cap moulds for 5 gallon and 3 gallon bottle to meet customer's requirements.

Technical parameter:

ITEM	UNIT	MW-D1
Cavity	pcs	1
Min.product capacity	L	10
Max.product capacity	L	25
Min.inner neck diameter	mm	55
Max.inner neck diameter	mm	180
Max.product diameter	mm	300
Max.product height	mm	470
Max.mould thickness	mm	200-350
Mould opening stroke(Adjustable)	mm	350
Theoretical output	bph	60-90
Operating pressure	Mpa	0.7-1.0
Blowing pressure	Mpa	1-3
Heater power	kw	28.8
Machine weight	kg	1350
Heater weight	kg	350
Machine dimension(LWH)	m	2.3×0.85×2.2
Heater dimension(LWH)	m	2.35×0.7×1.8

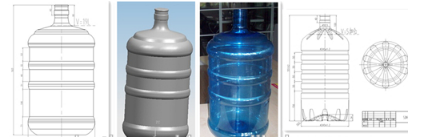

5 gallone blowing part machine photos:

Our Services

Installation service

When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

The sample service

1. We can send you the video of the running machine.

2. You are welcome to come to visit our factory,and see the machine running.

Customized service

1. We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service

1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2. When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4. We provide one year warranty

5. Well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 . 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

7 . 12 Months guarantee and life-long technical support.

8. Your business relationship with us will be confidential to any third party.

9. Good after-sale service offered, please get back to us if you got any questions.

Quality Control

We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.

If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.
