    18.9L Bottle Volume Automatic Water Filling And Capping Machine 3 In 1 9000 Kg Weight

    Ask Lasest Price
    Brand Name : HIGEE
    Model Number : YBQ 50-50-15
    Certification : ISO 9001 ,CE ,
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 sets
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    18.9L Bottle Volume Automatic Water Filling And Capping Machine 3 In 1 9000 Kg Weight

    Competitive price water bottle filling and capping machine

    The automatic water filling machines line

    1 . 3 in 1 Triblocks

    1.1 Automatic washing

    1.2 Automatic filling

    1.3 Automatic capping

    2. Automatic labelling machines
    3. Packaging machines
    4. PET blow moulding machines
    5. Compressor stations

    6. Conveyer systems
    7.Palletizers
    8. CIP stations
    9. Additional equipment

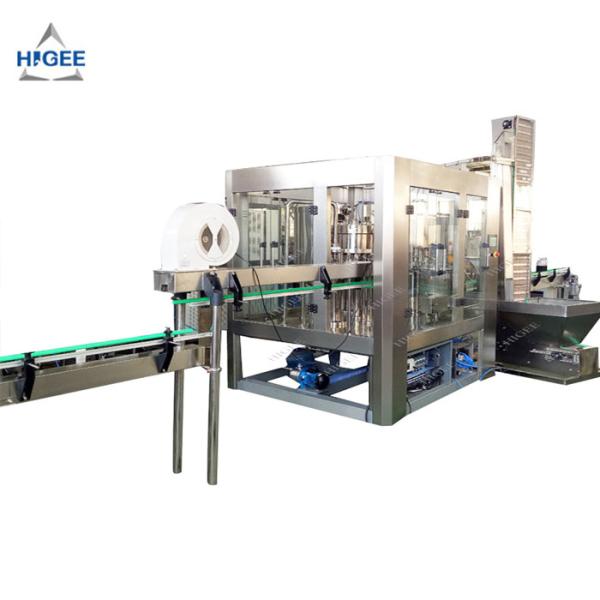

    This is YBQ washing - filling -capping machine 3 in 1 monoblock: this beverage drinks machinery is used to produce polyester bottled mineral water ,underground water , well water ,natural spring water, purified water, sparkling water , flavored water and other non carbonated drink machinery .

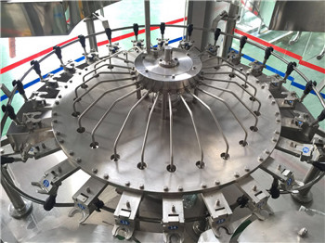

    Rinser filling:

    lAll 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean

    l304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

    l304 stainless steel washing pumps


    18.9L Bottle Volume Automatic Water Filling And Capping Machine 3 In 1 9000 Kg Weight


    18.9L Bottle Volume Automatic Water Filling And Capping Machine 3 In 1 9000 Kg Weight


    Filler machine :

    l High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,

    l Gravity filling nozzles which ensure minimal loss of CO2 from the drink

    l All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean

    l No bottle no filling

    Capper machine:

    l Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

    l All 304stainless steel construction

    l No bottle no capping and Automatic stop when lack of bottle



    18.9L Bottle Volume Automatic Water Filling And Capping Machine 3 In 1 9000 Kg Weight


    Containers and Specifications

    Project Name:

    Automatic Plastic/Glass Bottle Beverage Machine 2000-42000bph Production Line

    Water /Non Carbonated Drinks / Beverage Juice / Soft Drink
    MaterialShapeFilling volumeFilling level(mm)Neck type

    PET Bottle

    Glass Bottle

    PC Bottle

    Can

    Square Bottle

    Round Bottle

    Shaped bottle

    Can

    330 - 2000ml

    3 - 10L

    3 - 5 Gallon

    Distance from bottle neck

    According request

    As request
    Adjustable specifications of the bottle typeBottle diameter ≤110mm Bottle Height≤340mm
    Customers need to buy additional change-over parts for the different bottles.
    If using square bottles, then bottle separating system will be added.
    Juice PreparationFruit , Concentrate, Powder mixing .....
    Container Label & Control ModePackaging systemPalletizing system

    Hot Melt Label

    PVC Shrink Label

    Full Label/ Semi AutoLabel

    Manual / Automatic

    Packing systemMin, Spec.

    Manual

    Low position gantry palletizer

    Robot Palletizer

    High position gantry palletizer

    Single Arm Palletizer

    Manual Palletizer

    Manual
    Film shrinker
    Wrap Around packer
    Robert Packing Machine
    1*2
    2*3
    3*4
    4*6
    3*5
    User Ambient ConditionsTemperature:10~40℃;Humidity:No dew
    User Electrical Supply SpecificationVoltage:380V±5%, 3phase; Frequency:50HZ±1%
